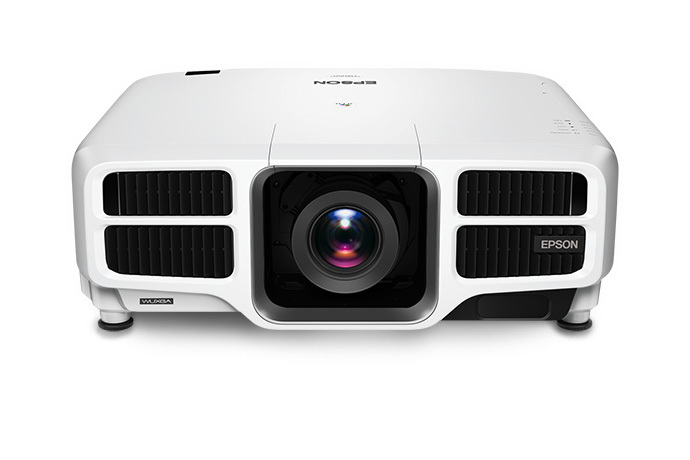

Experience the vibrancy of crystal-clear projection with the Epson Pro L1490UNL. Equipped with powerful 3-chip, 3LCD and native WUXGA with 4K Enhancement Technology, this state-of-the-art, large-venue laser projector displays crisp, luminous images at 9,000 lumens of color and white brightness. Designed with ease in mind, the Pro L1490UNL’s laser light engine and electrostatic air filter provide virtually maintenance-free operation for up to 20,000 hours. Plus, this elegant, white projector features a full range of inputs, Edge Blending and 10 optional powered lenses, making it an ideal solution for conference rooms, auditoriums and live events.

Categories: , Tags: , , , , ,

Description

Specifications:

Projection System: High-aperture Epson 3LCD, 3-chip technology
Projection Method: Front/rear/ceiling mount
Driving Method: Poly-silicon TFT Active Matrix
Native Resolution: WUXGA with 4K Enhancement1 (1920 x 1200 x 2)
Resolution on Screen: WUXGA with 4K Enhancement1/ 4.6 million pixels1
Pixel Number in Device: 2,304,000 pixels (1920 x 1200) x 3 chips
Signal Input: Maximum display resolution: 4096 x 2160 (resizing display)
Display resolution: 1920 x 1200 pixels
Color Brightness – Color Light Output: 9,000 lumens2
White Brightness – White Light Output: 9,000 lumens2
Aspect Ratio: Supports 4:3, 16:9, 16:10
Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
Brightness Uniformity: 90%
Pixel Arrangement: Cross stripe
Size – projected distance: 50″ – 300″
Keystone Correction: Vertical: ±45 degrees; Horizontal: ±30 degrees
Contrast Ratio:2,500,000:1 AbsoluteBlack™ (Full White 8,000 lm/Full Black 0 lm)
Color Reproduction: Up to 1 billion colors
Light Source Life:20,000 hours3
Illumination Technology: Laser Phosphor

General:

Operating Temperature: 32 ° to 113 °F (0 ° to 45 °C)
Weight:48.4 lb
Security: Security cable hole, lens lock, Kensington lock provision

Projection Lens:

Type: Powered shift/focus/zoom (With standard lens)
F-number:1.8 – 2.35 (With standard lens)
Focal Length:36.0 mm – 37.4 mm (With standard lens)
Zoom Ratio: Optical zoom 1 – 1.6x (With standard lens)
Throw Ratio Range:1.57 – 2.56 (With standard lens)
Lens Shift: Vertical: ±60%; Horizontal: ±18% (With standard lens)

Projector Details:

Display Performance: NTSC: 480 line, PAL: 576 line (depends on observation of the multi-burst pattern)
Input Signal: Maximum display resolution: 4096 x 2160 (resizing display)
Display resolution: 1920 x 1200 pixels

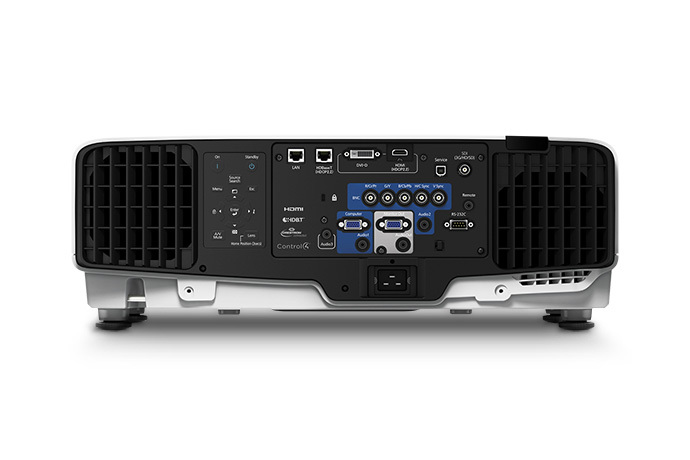

Interfaces:

  • 3G-SDI x 1
  • DVI-D x 1
  • HDMI x 1
  • HDBaseT x 1
  • 5-BNC, VGA x 1
  • Audio in: Mini Stereo x 3
  • Variable audio out: Mini Stereo x 1
  • USB connector Type B x 1: For service only
  • USB connector Type A x 1: For wireless only
  • Monitor out: Mini D-sub 15 pin x 1
  • Serial: RS-232c x 1

Fan Noise: 37 dB (Normal Mode); max. 30 dB (Quiet Mode)

Projector Dimensions:

Including feet: 23.1″ x 19.4″ x 8.3″

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz AC
Power Consumption:
645 W (Normal Mode)
524 W (Extended Mode)
2.0 W Standby (Communication on)
0.5 W Standby (Communication off)
